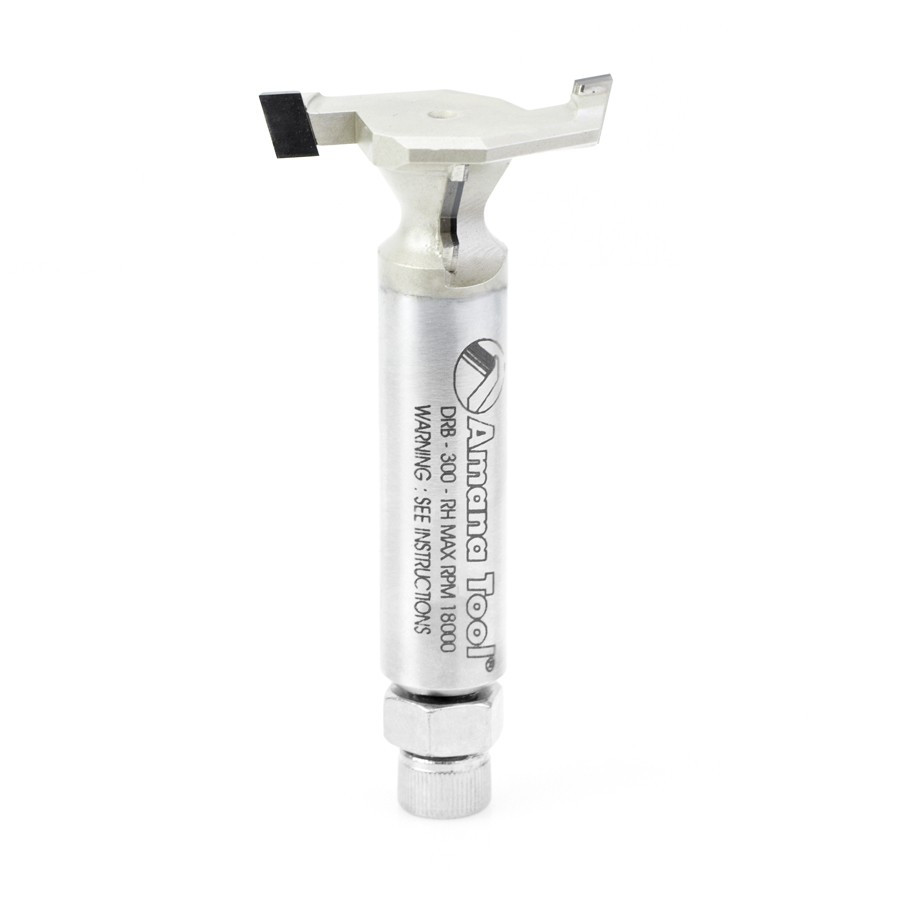

Diamond Tipped (PCD) T Slot Router Bits
Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.
If you’re looking for the ultimate in tooling, you’ve found it! Amana Tool®'s PCD tipped t-slot CNC router bits will groove a wide variety of tough, abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts at least 25 times longer than carbide for extremely long life. Depending on the material being cut, PCD tooling has been known to out perform a carbide tool by a ratio of 300:1. However, to be conservative in your buying decision, we suggest you base your expectations on 25:1 ratio over carbide tooling.
'T' Slot diamond tipped router (standard 'T' slot). Re-sharpen one to two times.
Excellent for Cutting:
- Aluminum
- Aluminum Composites
- Composites
- Hardwood
- MDF
- Melamine
- Particle Board
Benefits of Diamond Technology
- Harder cutting edge provides higher resistance to wear
- Cut thousands of feet more than carbide without changing tool, saving setup time
- Optimized machine tool efficiency
- Quality of finish is often significantly improved
| Rotation | Right Hand |
|---|---|
| (D) Diameter | 1-3/8 |
| (B) Cutting Height | 1/4 |
| (d) Shank | 1/2 |
| Overall Length (L) | 2-3/8 |
| B1 | 1/16 |
| Max RPM | 30,000 |
| Type | RH |
| D1 | 3/8 |
| Cutters | 2+1 |
Accessories
Additional
| SKU | DRB-300-RH |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
