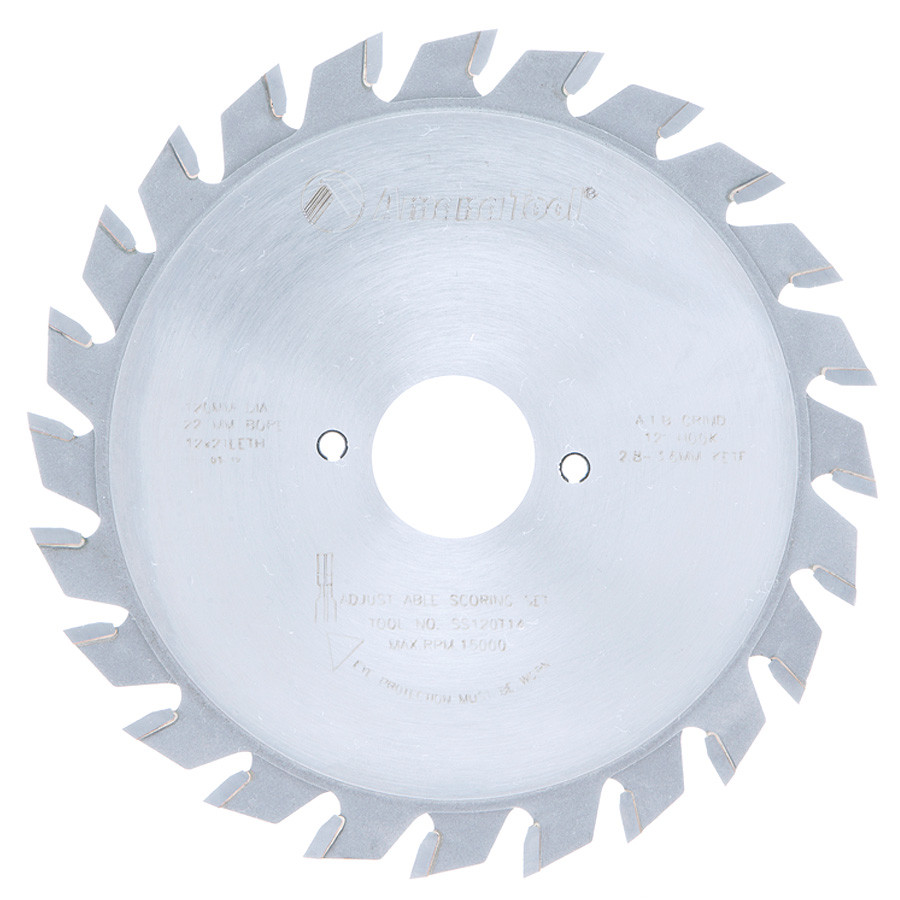

Used on panel saws and sliding table saws with separate scoring units for chip-free cuts on both sides of the material. Adjustable scoring sets consist of two 12-tooth saw blades with shims to adjust the kerf width (2.8mm to 3.6mm). Used in combination with our industrial saw blades 6' series only. (Example: #614721, #616961, etc.).
Note: Due to many different scoring machine sizes (particularly arbor sizes), it is advisable to measure both the scoring and main blades that are presently on your machine (diameter,bore,kerf,etc.).
This adjustable scoring set with 22mm bore can be converted to either 3/4" bore by ordering two each #BU-130 bushings, or to 20mm bore by ordering two each #BU-140 bushings.
| (D) Diameter | 120mm |
|---|---|
| Teeth | 12 x 2 |
| (d) Bore | 22mm |
| Tooth Grind | ATB |
| Hook Angle | 12° |
| Kerf (B) | .110 - .142 (2.8 - 3.6mm) |
| Machine | Altendorf, Martin, Mrozek |
| Plate (C) | .078(x2) (2.0(x2)mm) |
Additional
| SKU | SS120T14 |
|---|---|
| Weight, lb | 0.8800 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
