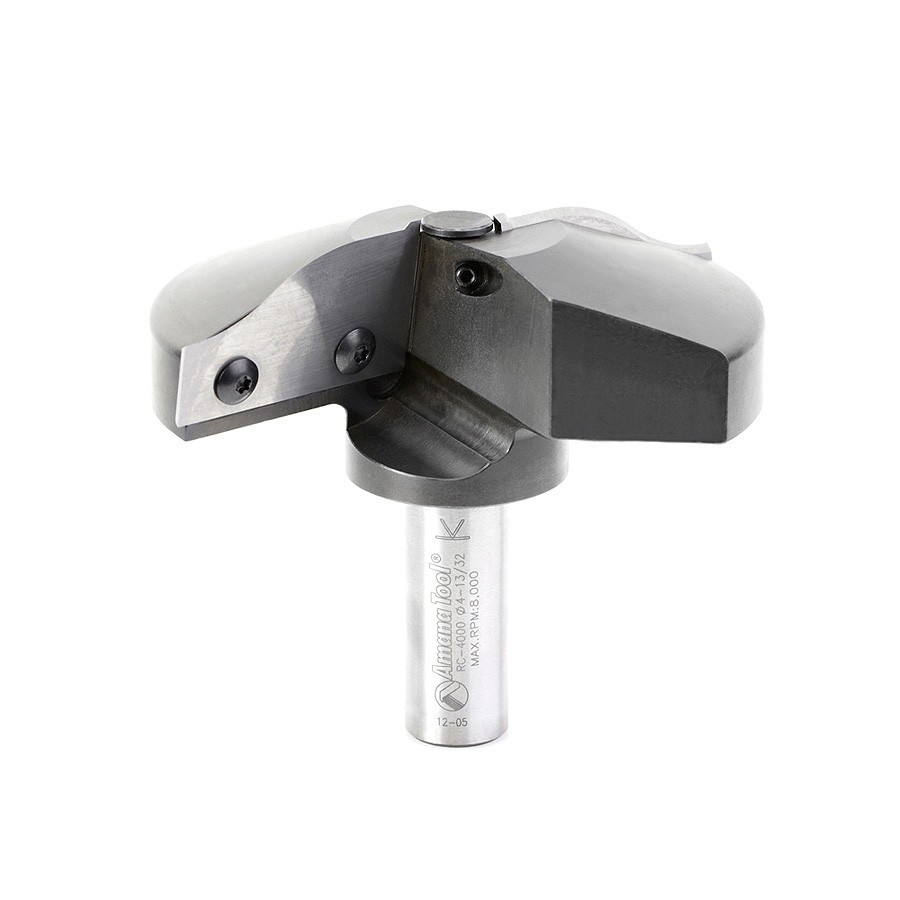

Infinity System Multi Profile Raised Panel Insert CNC Router Bits
Insert profile router bit with two cutting flutes. Suitable for producing various raised panel profiles in softwood, hardwood and man-made boards. Tool can be supplied complete with a small trimmer for machining the edge of the panel. One router will take all eight different profiles. For use on routers and machining centers with CNC control.
| (D) Diameter | 112mm |
|---|---|
| (B) Cutting Height | 28mm |
| (d) Shank | 3/4 |
| Overall Length (L) | 4-11/32 |
| Max RPM | 8,000 |
| Repl. Blade | RCK-200 |
| Flutes | 2 |
| Feed Rate IPM | 240" |
| D1 | 18mm |
| Chip Load | 0.012" |
Additional
| SKU | RC-4000 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
