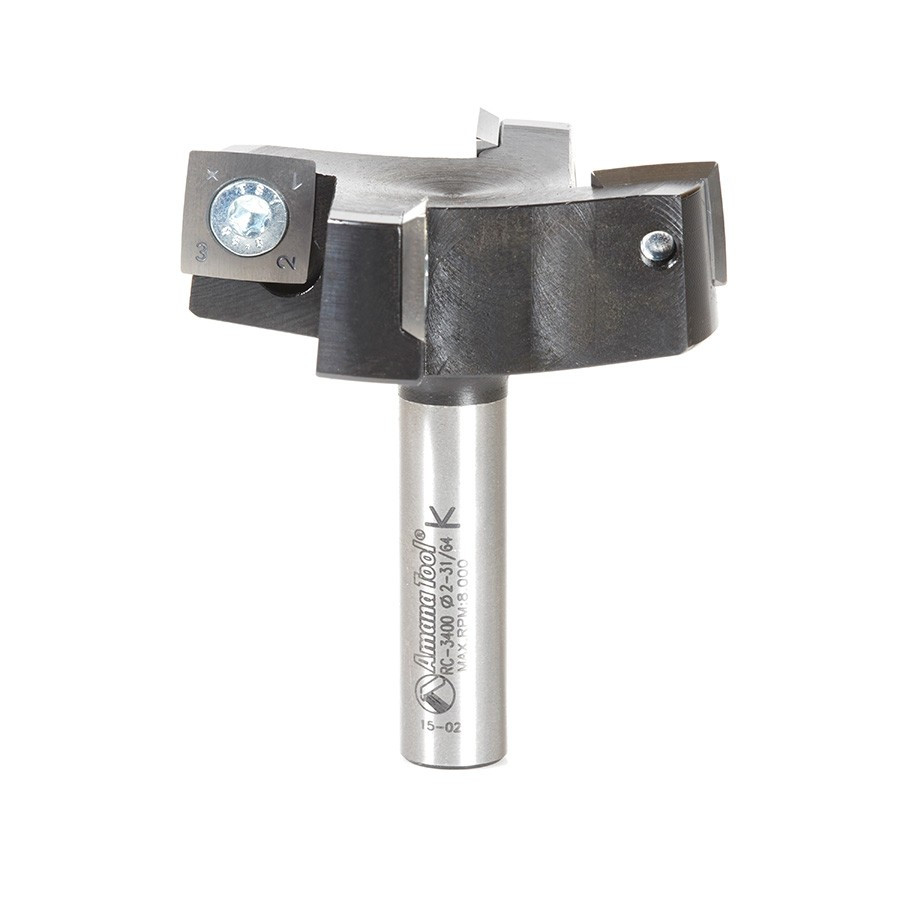

Face Milling for Non-Ferrous Metals Solid Carbide Insert CNC End Mills / Router Bits
The replaceable tips end mill/router bit tool body made from alloy steel with 4 solid carbide cutting inserts for maximum feed and stability, specially made for CNC and milling machines.
Each tip is made from micrograin carbide for maximum tool life and has 4 cutting rounded corners that can be rotated.
Excellent for cutting:
- Aluminum
- Bronze
- Copper
Applications:
- Milling / Surfacing / Facing
- Shouldering / Rabbeting
- Slotting / Grooving
Use "Ramp Down" technique.
Feed Rate: 25"/min - 63"/min
Chip load per tooth: 0.0008" - 0.002"
Chip load per tooth: 0.0008" - 0.002"
Maximum RPM: 8,000 RPM
| (D) Diameter | 2-31/64 |
|---|---|
| (B) Cutting Height | 15mm |
| (d) Shank | 1/2 |
| Overall Length (L) | 2-53/64 |
| Max RPM | 8,000 |
| Feed Rate IPM | 25"/min - 63"/min |
Additional
| SKU | RC-3400 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
