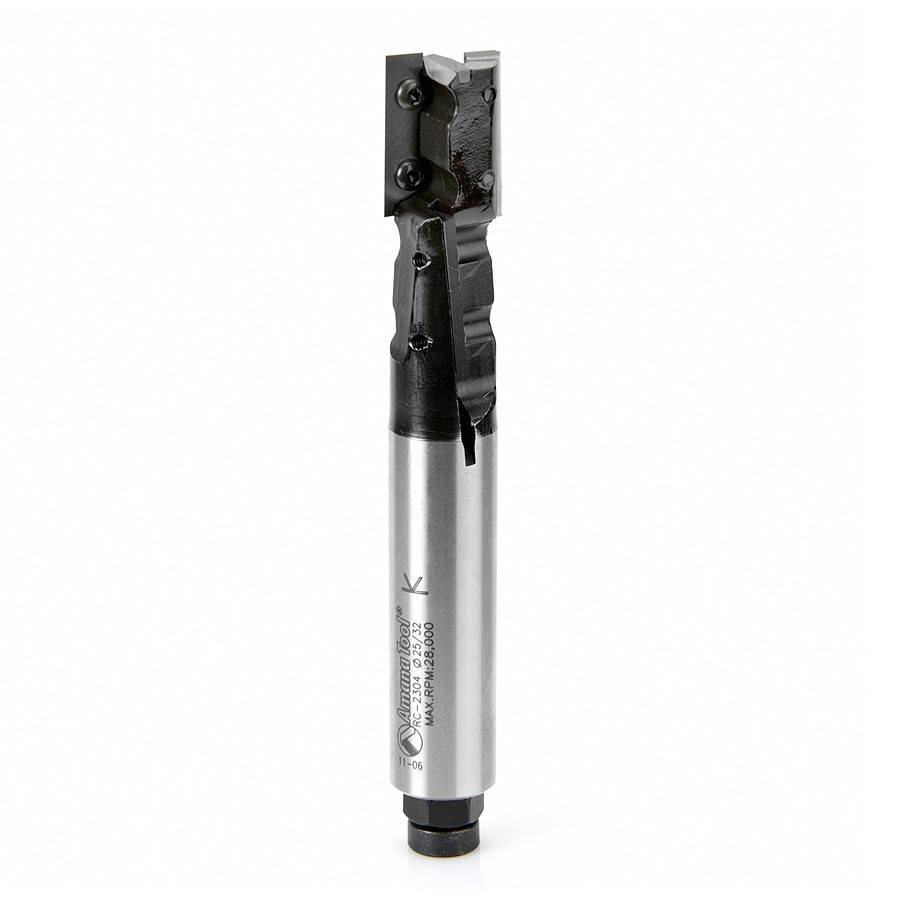

Up & Down Shear Insert CNC Router Bits
Insert straight router bit complete with two up/down-shear flutes and center tip. Shear flutes squeeze the material into the middle to give an extra fine finish on both surfaces of laminated and veneered board. Replaceable inserts ensure a constant cutting diameter and finish quality. Center tip for improved boring. For use on routers with CNC control.
Standard tightening torque for M3 screw is 0.2 Nm
| (D) Diameter | 20mm(25/32) |
|---|---|
| (B) Cutting Height | 50mm |
| (d) Shank | 3/4 |
| Overall Length (L) | 130mm |
| Max RPM | 18,000 |
| Replacement Knives | RCK-28 (4 knives required) |
Additional
| SKU | RC-2304 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
