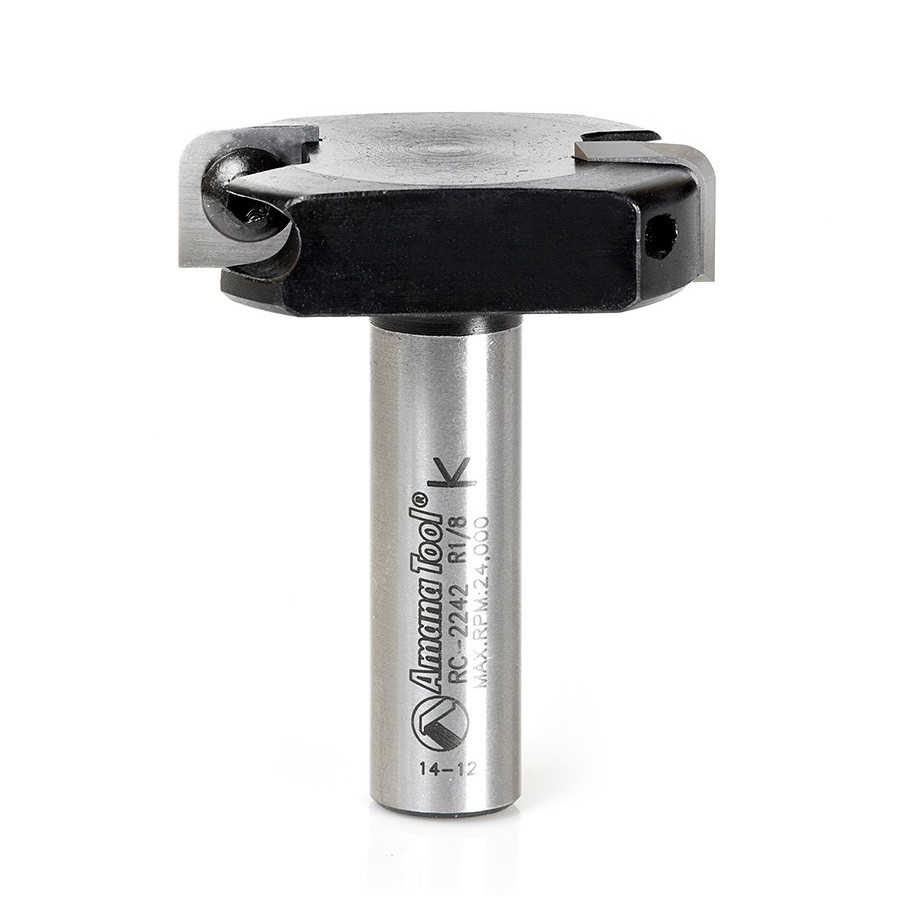

Insert Spoilboard Surfacing, Rabbeting, Flycutter, Leveler, Bed Skimming & Surface Planer Router Bit
Amana’s new radius edge cutter RC-2242 is best recommended to be used for surface planing/flattening in surfaces of large solid wood slabs with a handheld router in router sleds.
Features a 1/8" radius bevel, making this tool unique compared to other spoilboard bits. A great tool for fast removal of materials over a large surface area.
Designed for planing & rabbeting the following materials:
- MDF
- Fiberboard
- HDF/LDF
Featuring:
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
- Longest tool life
These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull, providing the highest-quality finish available on woodworking tools.
| (D) Diameter | 1-3/4 |
|---|---|
| (R) Radius | 1/8 |
| (a°) Angle | 5° |
| (B) Cutting Height | 12mm (15/32) |
| (d) Shank | 1/2 |
| Overall Length (L) | 1-49/64 |
| Max RPM | 24,000 |
Additional
| SKU | RC-2242 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
