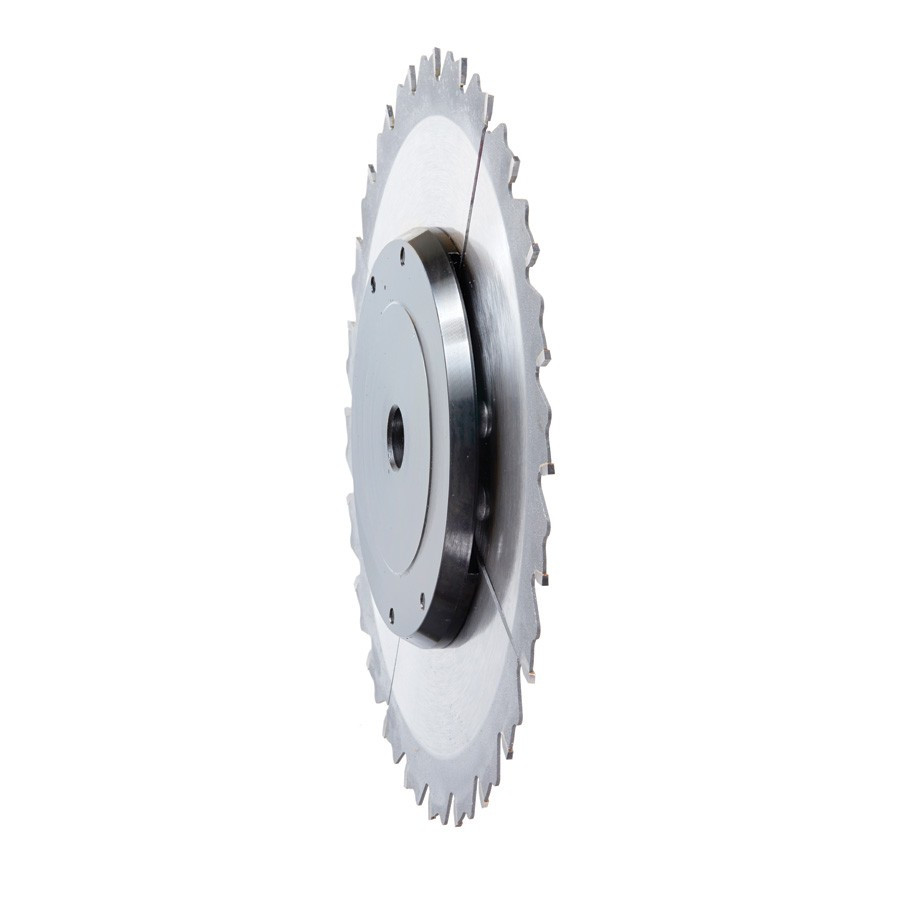

Adjustable Thin Kerf Replaceable Blade System
Our new 24 tooth adjustable thin kerf dado set allows the user to cut precise dadoes from 1/16" to 1/4" wide. Set contains one split steel hub with a 5/8" bore and two different saw blades that when shims are added, enables you to achieve a variety of dado widths. The 1/16" blade #61381 will give you a minimum kerf of 1/16" (0.062") to a maximum of 1/8" (0.125") with shims while the 1/8" blade #61382 will give you a minimum kerf of 1/8" (0.125") to a maximum of 1/4" (0.250") with shims.
Maximum groove depth (T) is 1-1/8".
System allows you to make thinner grooves on a table saw that previously could not be achieved with standard kerf dado sets.
Excellent for cutting:
- Hard Wood
- Soft Wood
- MDF
- Chipboard
Very good for cutting:
- Melamine
Warning: This set requires a custom zero clearance throat plate.
| Teeth | 24 |
|---|---|
| (d) Bore | 5/8 |
| Tooth Grind | ATB |
| Hook Angle | -10° |
| ATB Angle | 15° |
| T | 1-1/8 |
| Kerf (B) | 1/16 - 1/4 |
Additional
| SKU | 61380 |
|---|---|
| Weight, lb | 4.4200 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
