Details

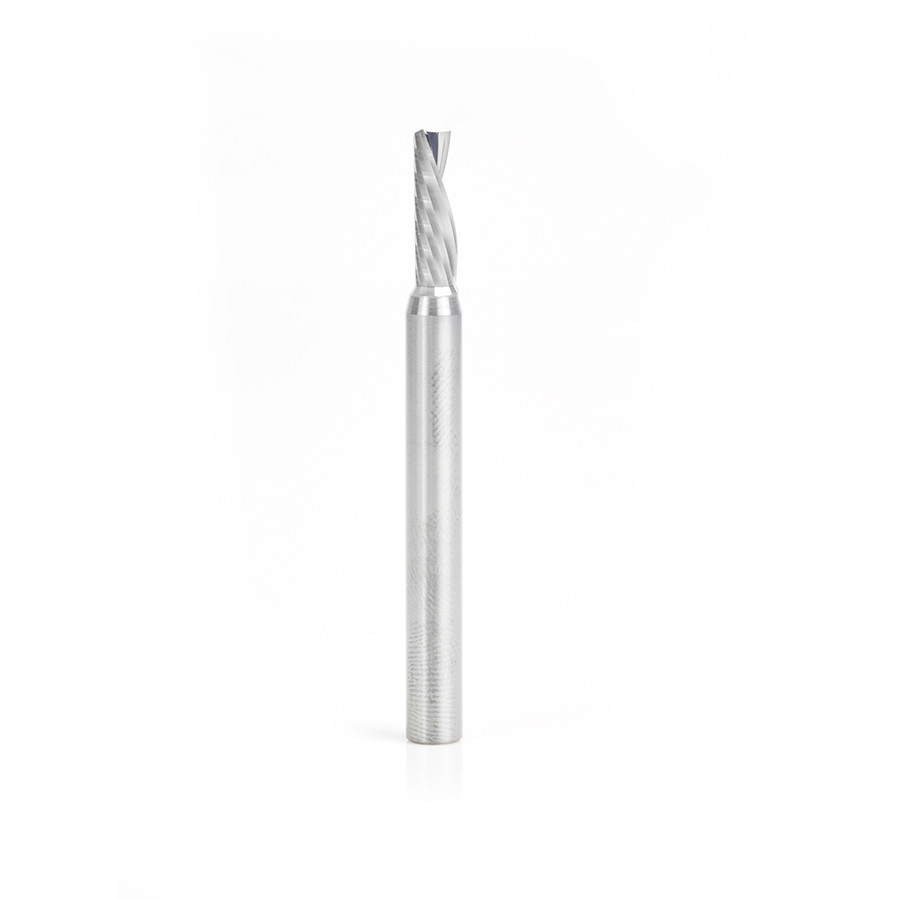

Solid Carbide Spiral 'O' Flute Plastic Cutting Down-Cut CNC Router Bits
To be used only on CNC machines and routers with automatic feeding.
Produce super clean smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips down. Ideal for industrial applications and CNC machines. Left hand helix left hand cut.
Excellent for cutting:
- Plastic/Acrylic
- Acetal and Nylon
- Acrylic Stone
- Acrylonitrile Butadiene Styrene (ABS)
- Alupanel®
- Corian
- Coroplast®**
- Corrugated Plastics* such as Correx Boards and Polyproylene
- Delrin
- Foam Board
- Gatorfoam®***
- High Density Polyethylene (HDPE)
- High Impact Polystyrene (HIPS)
- King ColorCore® The Multi-Color Engravable Polymer Sheet.
- Lucite®
- Low Density Polyethylene (LDPE)
- Mechanical/Engineered Plastics
- Plexiglas®
- Poly (methyl methacrylate) (PMMA)
- Polycarbonate
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Solid Surface
- Teflon®
- Thermo Plastic Polyolephin (TPO)
- Ultra High Molecular Weight Polythylene (UHMW)
- Wood
*Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.
**A soft plastic cardboard made with super soft super flexible PVC.
***Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.
Benefits of Mirror-Finish:
- Razor sharp cutting edge
- Effortless chip removal
- Helps prevent chip re-welding
- Extends tool life
- Exceptional cut quality
Maximum RPM: 35 000
| Direction | Down-Cut |
|---|---|
| (D) Diameter | 5mm |
| (B) Cutting Height | 16mm |
| (d) Shank | 6mm |
| Overall Length (L) | 64mm |
| Flutes | 1 |
Additional
| SKU | 57332 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
