Details

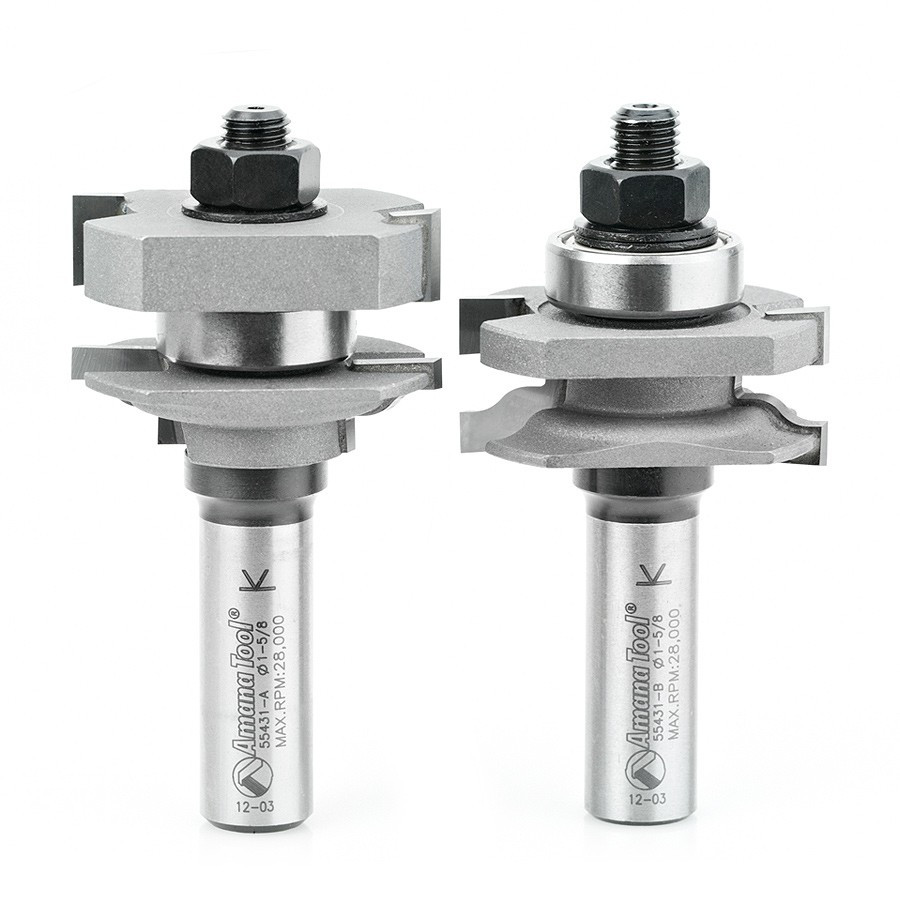

2-pc Ogee Stile & Rail Router Bit Sets for 3/4 Inch Material
Our stile and rail sets give you two complete bits, one for doing the rail cuts, one for the stiles. Make cabinet doors and all varieties of frame-and-panel assemblies for furniture and architectural applications. These sets are offered in two configurations, one for working material up to 1" thick, the other for material between 5/8" and 7/8" in thickness. The same three profiles are available in either configuration.
3/4" Material
Bits in this set have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.
3/4" Material
Bits in this set have profile and groove or rabbet cutters and ball-bearing guide mounted on a 1/2" shank. Respacing of the components should only be necessary – using the provided shims – after the cutters have been resharpened. Use in a table-mounted router. Guide straight cuts with the fence; use the pilot bearing only for cuts on curved rails or stiles.
| Diameter (D) | 1-5/8 |
|---|---|
| Radius (R) | 1/4 |
| Cutting Height (B) | 11/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-1/8 |
| B1 | 1/4 |
| Type | Ogee |
| Replacement Bearing | 47708 |
| Material size | 3/4 |
Additional
| SKU | 55431 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
