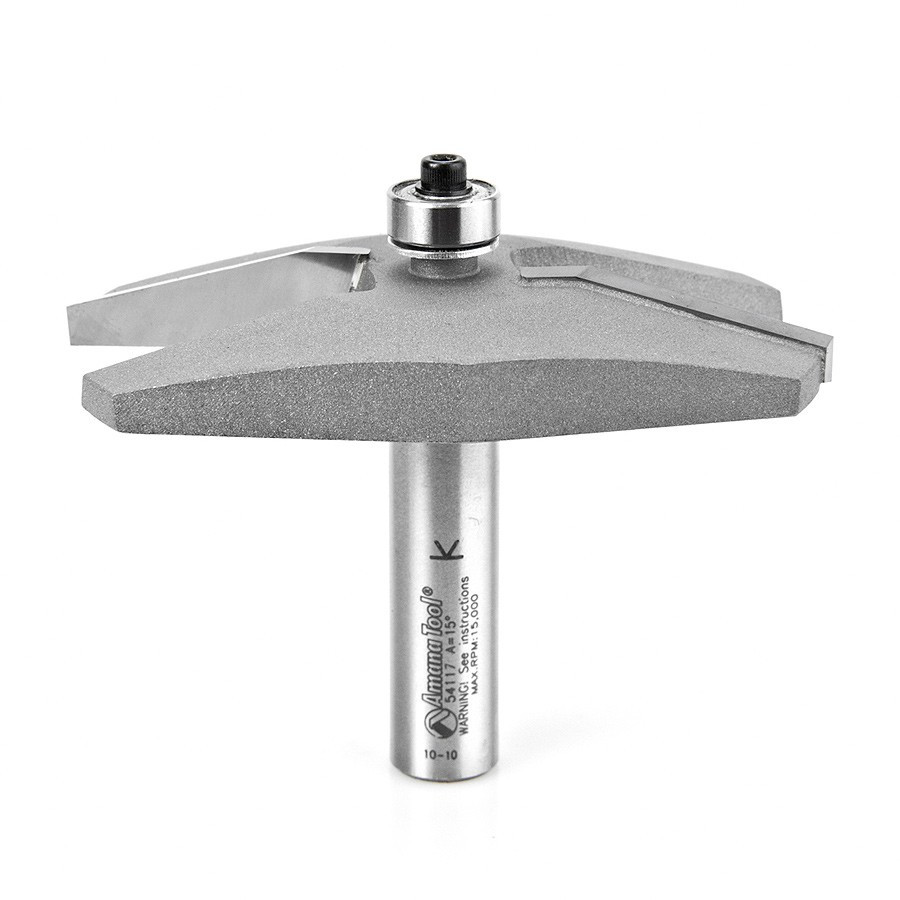

Traditional Raised Panel Router Bits
Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Maximum RPM 14,000.
| Diameter (D) | 3-3/8 |
|---|---|
| Cut Depth (A) | 1-7/16 |
| Angle (a°) | 15° |
| Cutting Height (B) | 1/2 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/8 |
| B1 | 5/16 |
| Replacement Bearing | 47706 |
| Flutes | 2 |
Additional
| SKU | 54117 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
