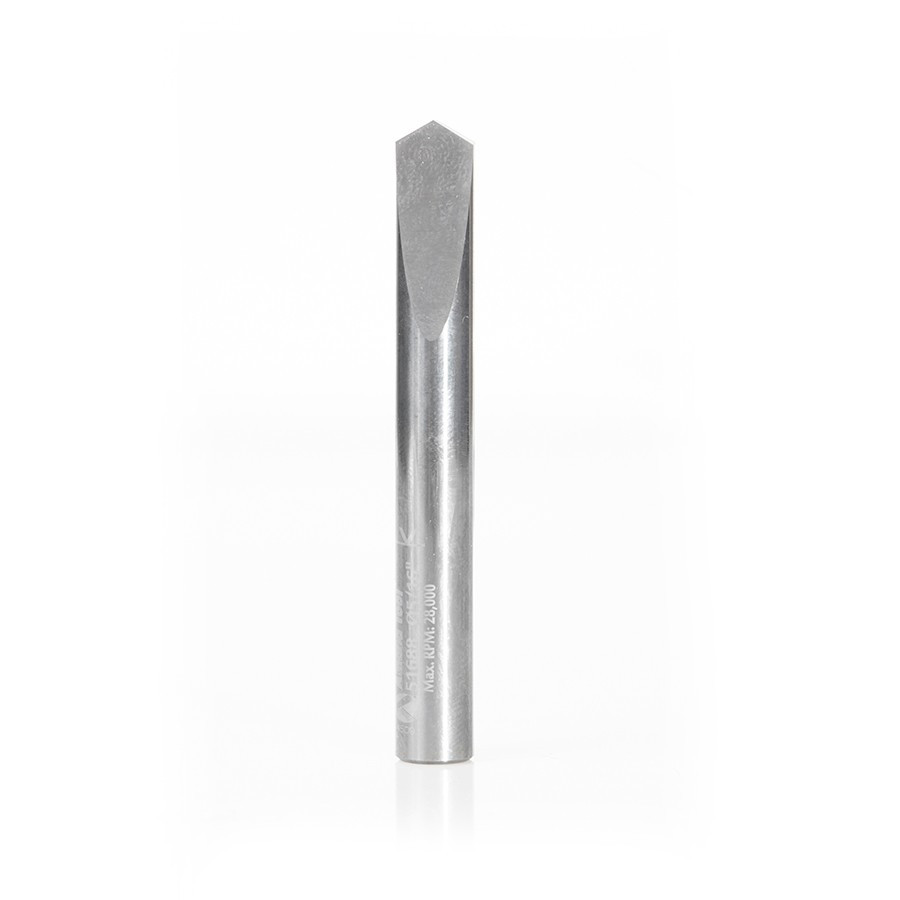

Solid Cabide 118° Point Spade Drill CNC Router Bits
Used to drill very short, shallow holes in hard (or hardened) steel.
They can be used either in CNC or drill presses.
Note: Make sure your drill press runs fast and has a tight spindle.
Excellent for Drilling:
- Stainless Steel
- Steel
- Cast Iron
- Titanium
- Non-Ferrous
- Cermet*
*Cermets are composites in which ceramic materials and metals join together.
Warning: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.
Note: For optimal results and extended tool like use mist lubricant system or air cooling.
| (D) Diameter | 5/16 |
|---|---|
| (B) Cutting Height | 7/8 |
| (d) Shank | 5/16 |
| Overall Length (L) | 2-1/2 |
| Flutes | 2 |
Additional
| SKU | 51688 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
