Details

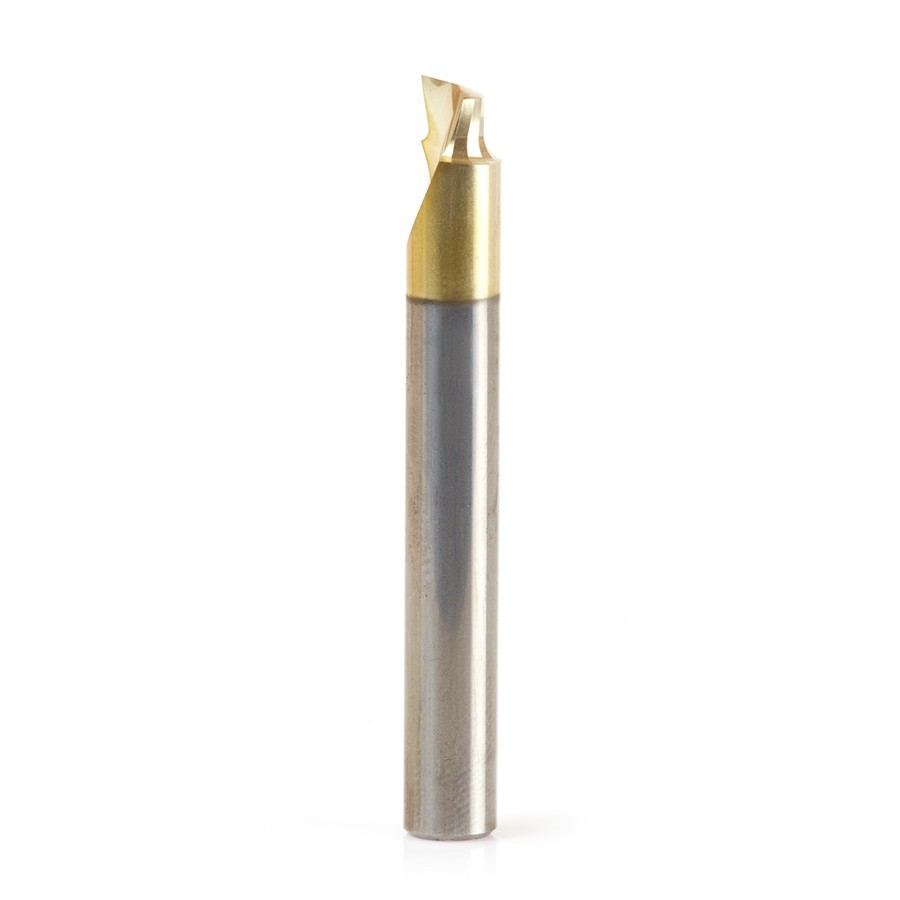

Solid Carbide Aluminum Radius Edge End Mill with Zirconium Nitride (ZrN) Coating
Designed to route a finished appearance into aluminum, brass, copper & non-ferrous metals in one pass, these Amana Tool end mills utilize the ‘O’ flute up-cut design for a super-clean finish. By combining the up-cut design along with the common 3/32” convex radius, you can maximize your efficiency by routing one single pass.
The Zirconium Nitride (ZrN) coating creates a harder and tougher cutting ceramic over carbide edge, allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting.
Amana’s combination end mill/router bits offer the flexibility to cut the radius along with the proven performance of the up-cut design for superior chip ejection.
Excellent for cutting:
- Aluminum
- Brass
- Copper
- Gold
- Non-Ferrous Metal
- Silver
- Acrylonitrile-Butadiene-Styrene (ABS)
- Lexan™
The Zirconium Nitride (ZrN) coating creates a harder and tougher cutting ceramic over carbide edge, allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting.
Amana’s combination end mill/router bits offer the flexibility to cut the radius along with the proven performance of the up-cut design for superior chip ejection.
| Direction | Up-Cut |
|---|---|
| (D) Diameter | 3/16 |
| (R) Radius | 3/64 |
| (B) Cutting Height | 1/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2 |
| Type | Radius |
| Flutes | 1 |
Additional
| SKU | 51622 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
