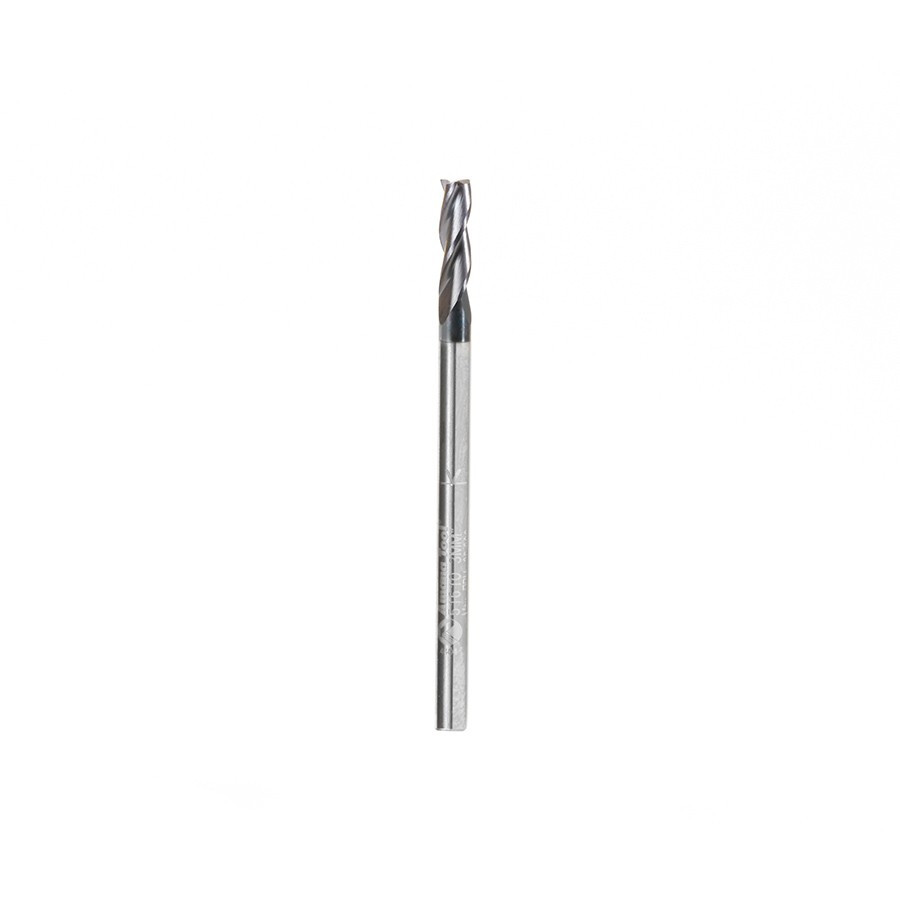

Solid Carbide Spiral CNC Router Bits with Aluminum Titanium Nitride (AlTiN) Coating
These router bits are manufactured from our exclusive ultra-fine micrograin carbide and feature a 30 degree Center Cutting Mill End, a corner chamfer (for extra strength), up cut design and very importantly, Aluminum Titanium Nitride (AlTiN) coating for superior cut quality.
Excellent for cutting:
- Stainless Steel
- Steel
- Cast Iron
- Composites
- Low Carbon Steel
- Magnesium
- Plastics
- Super Alloys
- Titanium (up to 40HRc Hardness)
These bits are perfect for the signmaking industry. Our special carbide grade combined with the AlTiN coating gives amazing performance. The unique corner chamfer gives the bits great strength.
AlTiN coating has many benefits:
- Extra wear resistance
- Allows for faster feed and speed rates
- Cutting edge protected from wear
- Better chip evacuation
- Less heat build up
- Superior cutting quality and extended tool life
WARNING: Inspect cut quality and adjust feed and speed accordingly. Care should be taken to observe proper feeds and speeds according to the workpiece material to avoid damage.
Note: For optimal results and extended tool life use mist lubricant system or air cooling.
| (D) Diameter | 3mm |
|---|---|
| (B) Cutting Height | 10mm |
| (d) Shank | 3mm |
| Overall Length (L) | 40mm |
| Max RPM | 28,000 |
| Flutes | 3 |
Additional
| SKU | 51610 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
