Details

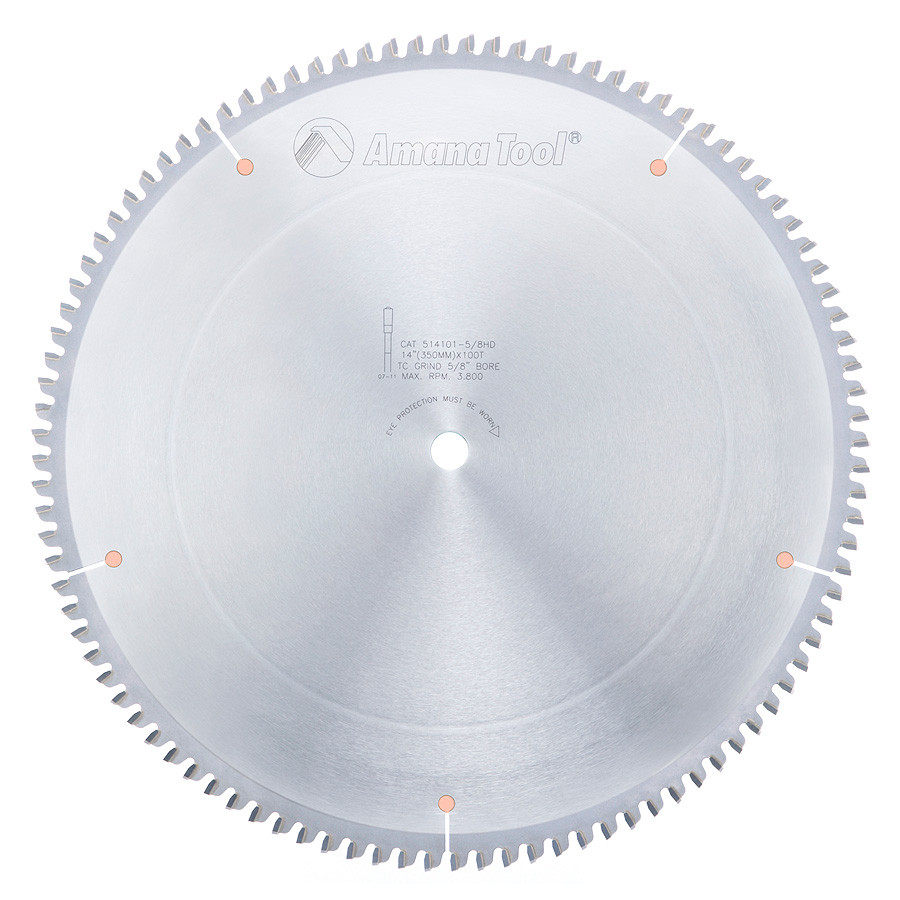

Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thin-walled aluminum and non-ferrous extrusions and frames. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other "difficult" materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).
Warning: Never attempt to cut ferrous metals with these blades.
Clamp down the workpiece.
For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.
| (D) Diameter | 14 (350mm) |
|---|---|
| Teeth | 100 |
| (d) Bore | 5/8 |
| Tooth Grind | TCG |
| Hook Angle | -6° |
| Kerf (B) | .146 (3.7mm) |
| Machine | Pistorious |
| Plate (C) | .118 (3.0mm) |
Additional
| SKU | 514101-5/8HD |
|---|---|
| Weight, lb | 5.9500 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
