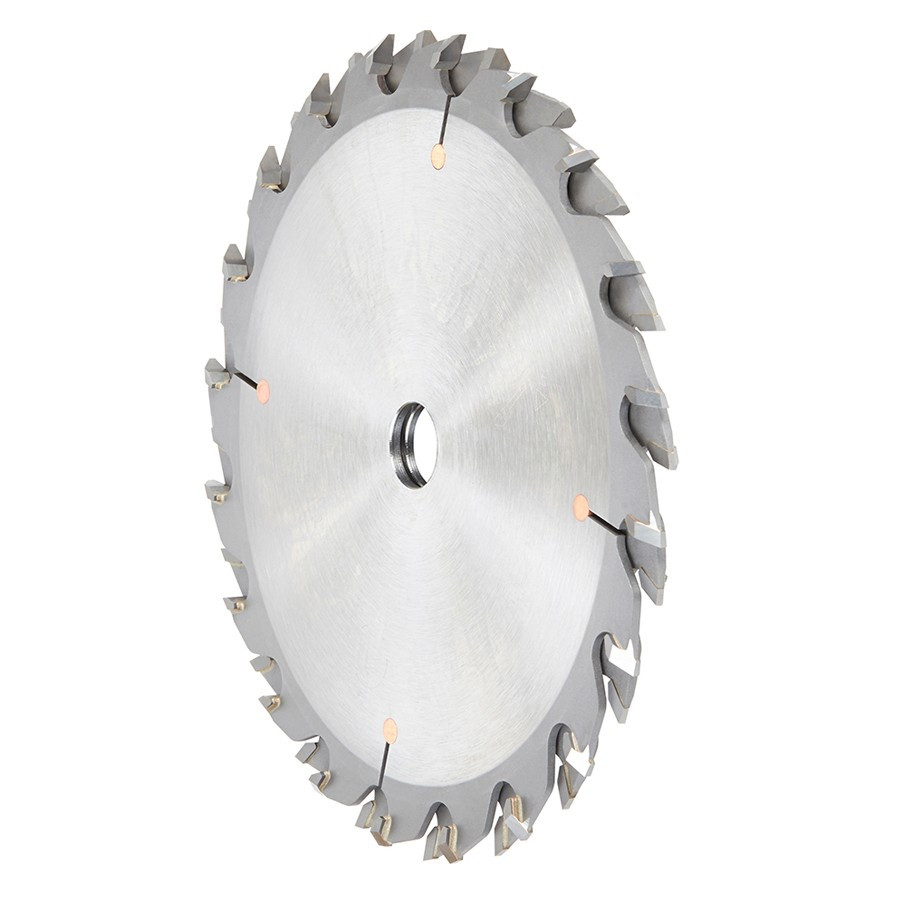

508400-1 Carbide Tipped Adjustable ACM Scoring Set 8 Inch Dia x 2x20T, 18 Deg, 1 Bore

This set contains two carbide tipped saw blades and a shim set. This unique system can be widely used for scoring many cladding materials (wall coverings) such as Alucobond®, Alupanel®, Dibond®, ALPOLIC® CCM, Trespa®, Durabond and more. The materials are used on facades and interior wall surfaces that can be found in office buildings, hospitals, convention centers, airports and hotels, along with exterior signage.

*ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.

Cutting V-shaped grooves with flat bottoms, whereby the aluminum cover and a part of the core is removed, allows for folding the remaining material by hand.

Warning: This set requires a custom zero clearance throat plate.

Warning: Not to be used with portable saws.

(D) Diameter	8
Teeth	2x20
(d) Bore	1
Tooth Grind	ACM
Hook Angle	18°
Kerf (B)	10.2-11.2mm
Machine	Table Saw
(W) Flat Bottom Range	2.0-3.0mm / 0.078-0.118
(a°) Angle	45°
B1	0.161"
