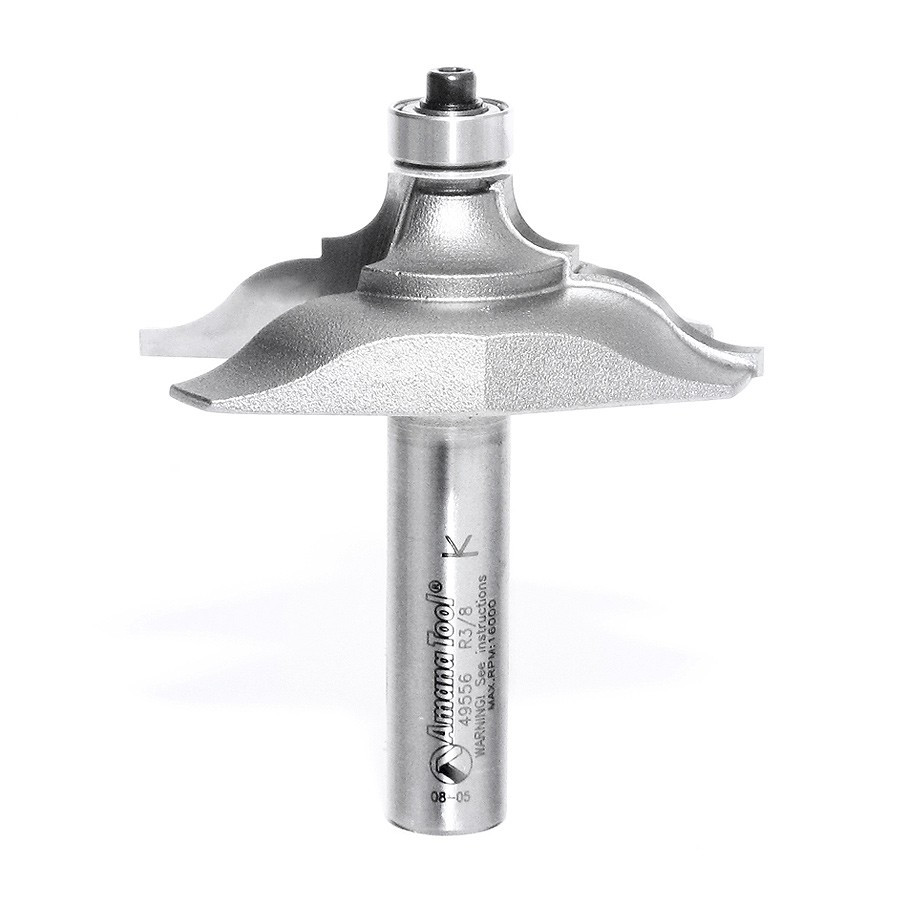

49556 Carbide Tipped Table Edge Classical 3/8 x 1/4 Radius x 2-1/2 Dia x 3/4 x 1/2 Inch Shank

More Views

49556 Carbide Tipped Table Edge Classical 3/8 x 1/4 Radius x 2-1/2 Dia x 3/4 x 1/2 Inch Shank

Be the first to review this product

Availability: In stock

$149.95

Details

Ogee & Bead Hand/Table Edge Router Bits

Cuts a shallow ogee into the tabletop surface coupled with a bead at the edge. Bit will produce a fillet if set to cut deep enough. With the optional 3/8" bearing, it will produce a fillet at the cut's edge. Good choice for handrails.

These special router bits are used for cutting table top edges or used with handrail side profile bits. Originally designed for easing and profiling the edges of tabletops, these bits also are widely used for the same purpose on handrails. See also handrail patterns. Eliminate hard edges, reduce the visual thickness of a tabletop, and add an elegant detail simultaneously with these bits.

Maximum RPM 16,000.

Diameter (D)  2-1/2
Radius (R) 13/32
Cutting Height (B) 25/32
Shank (d) 1/2
Overall Length (L) 2-3/4
B1 43/64
Replacement Bearing 47706
R1 13/64
Max RPM 16,000
Flutes 2
B2 7/64

Additional

SKU 49556
Weight, lb 1.0000
Dimensions No
Country of Manufacture United States
Manufacturer Amana Tool
