Details

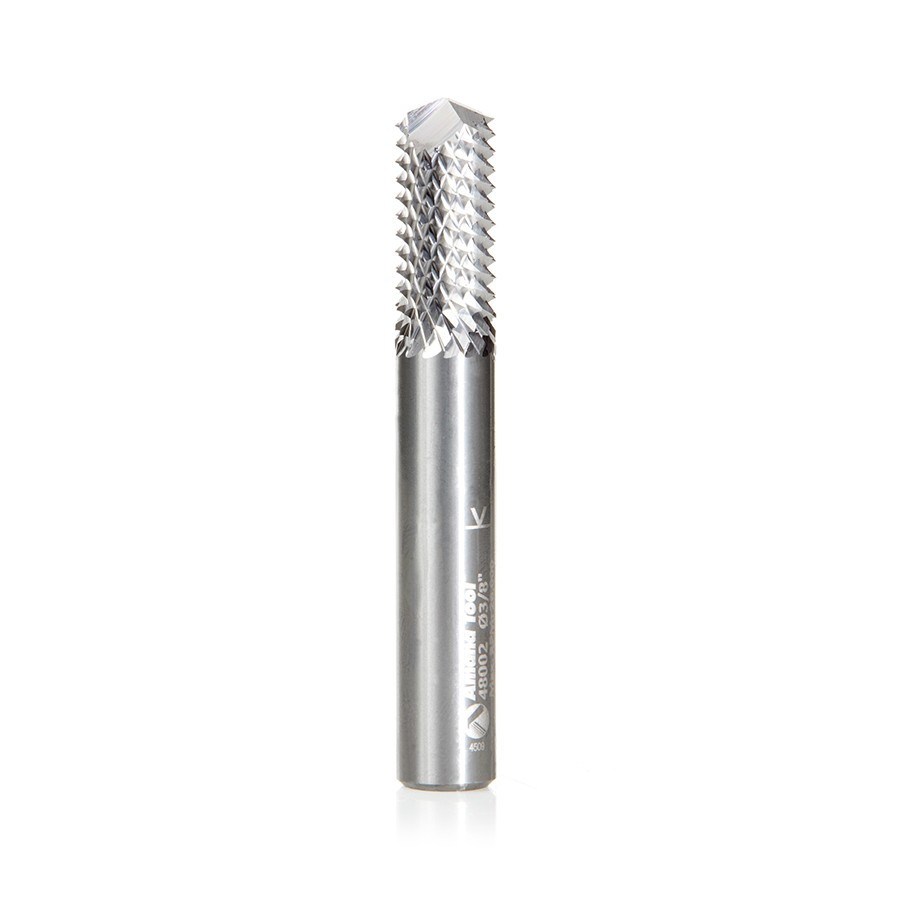

Solid Carbide Medium Burr with 135 Degree Drill Point Fiberglass and Composite Cutting Router Bits
Amana Tool's FiberGlass Router (FGR) burs incorporate reciprocating diamond-fluted geometry, strong negative rake angles and generous fluting to provide the best cutting action in a wide variety of woven resin bond fiberglass and composite materials.
Combining the proven performance of a diamond-cut geometry with the capacity to plunge while leaving a minimum of top-side burr. 135º drillpoint minimizes part deflection on thin or otherwise unsupported workpieces.
Excellent for Cutting:
- Carbon Fiber
- Carbon Fiber Reinforced Polymer - Plastic Materials (CFRP)
- Composite Materials
- Fiberglass
- Fiberglass PCB Board
- Fiber Reinforced Plastic (FRP)
- Glass Reinforced Plastic (GRP)
- G10
- G11
- Phenolic
| (D) Diameter | 3/8 |
|---|---|
| (B) Cutting Height | 7/8 |
| (d) Shank | 3/8 |
| Overall Length (L) | 2-1/2 |
| Type | Drill End |
Additional
| SKU | 48002 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
