Details

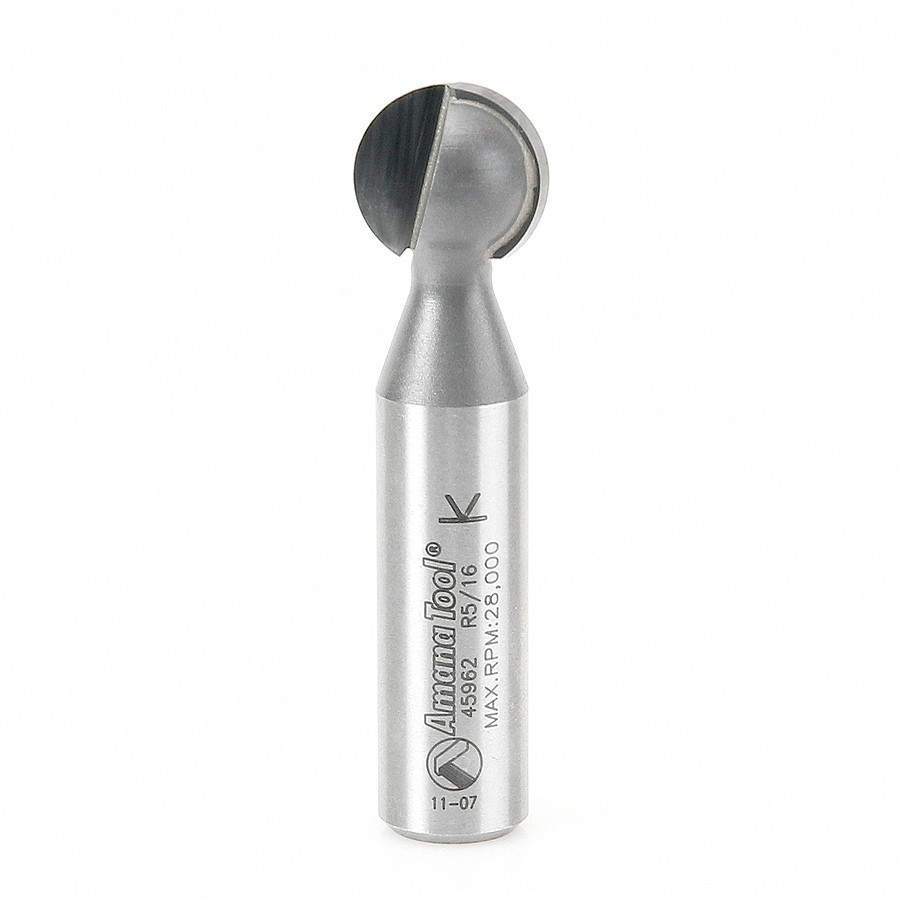

Ball End Router Bits
Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.
Note: Profile is useful as a ‘conduit’ for cables, pipes, etc.
| Diameter (D) | 5/8 |
|---|---|
| Radius (R) | 5/16 |
| Cutting Height (B) | 9/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/8 |
| Flutes | 2 |
| D1 | 9/32 |
Additional
| SKU | 45962 |
|---|---|
| Weight, lb | 1.0000 |
| Dimensions | No |
| Country of Manufacture | United States |
| Manufacturer | Amana Tool |
